Cisco Prime: Installation of Cisco Prime v2.0 – Secondary Server

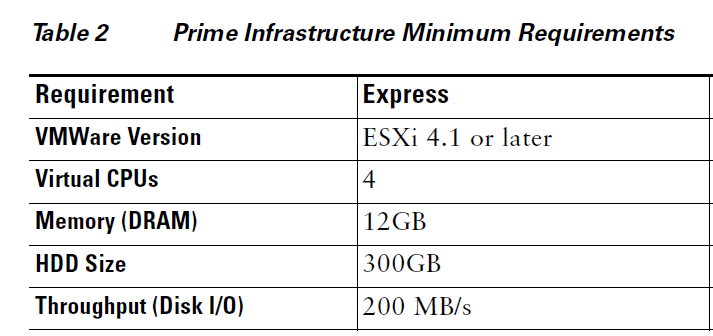

We will be dealing with the express installation file. The Express option replaces the Medium and Small options supplied in previous versions of Prime Infrastructure.

2014_07_03_14_12_51_Cisco_Prime_Infrastructure_2.0_Quick_Start_Guide.pdf_Adobe_Reader

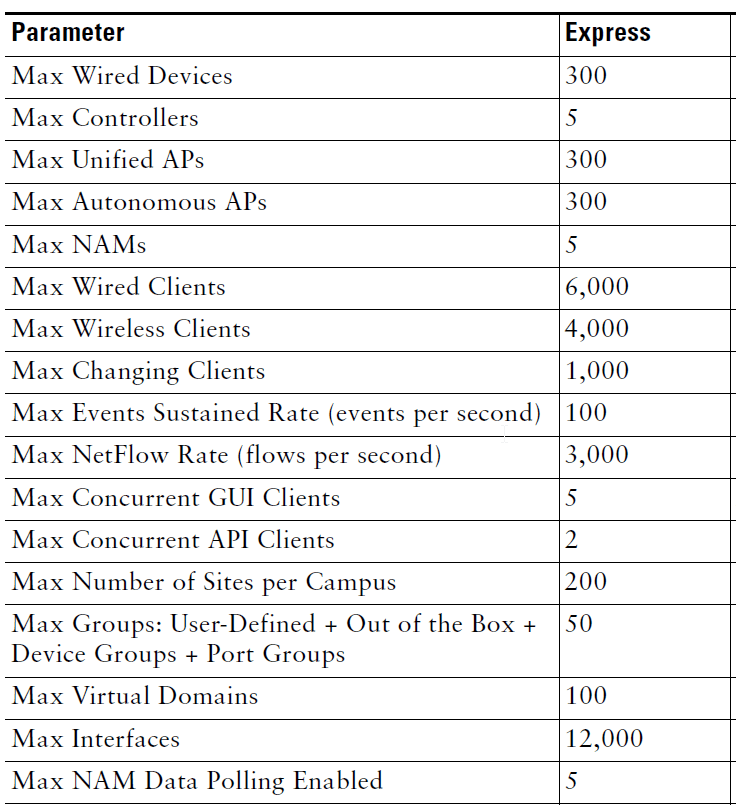

Here are the scaling limits for express installation

2014_07_03_14_18_29_Cisco_Prime_Infrastructure_2.0_Quick_Start_Guide.pdf_Adobe_Reader

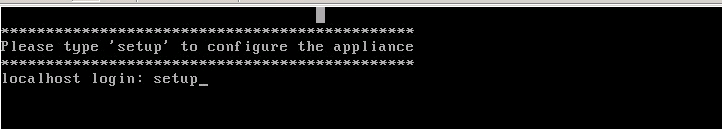

Installation process. To begin we need to login as setup.

2014_07_03_15_17_23_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

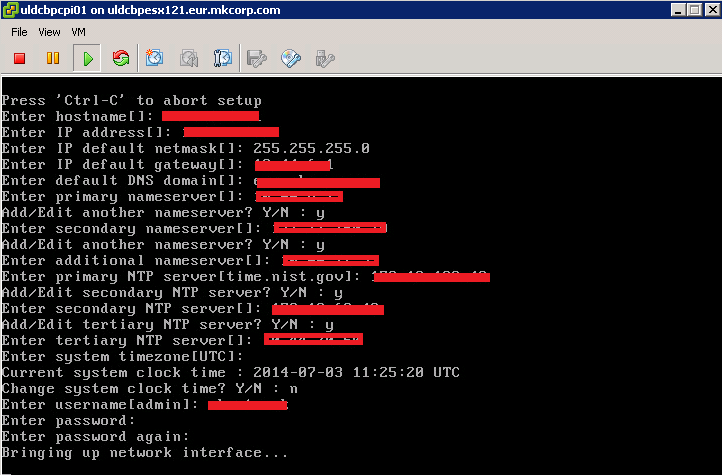

Fill in network parameters

2014_07_03_15_27_46_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

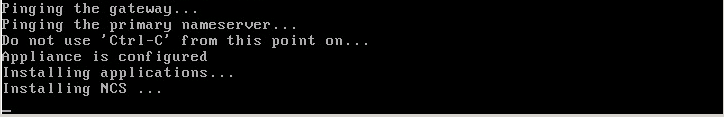

Wait for installation

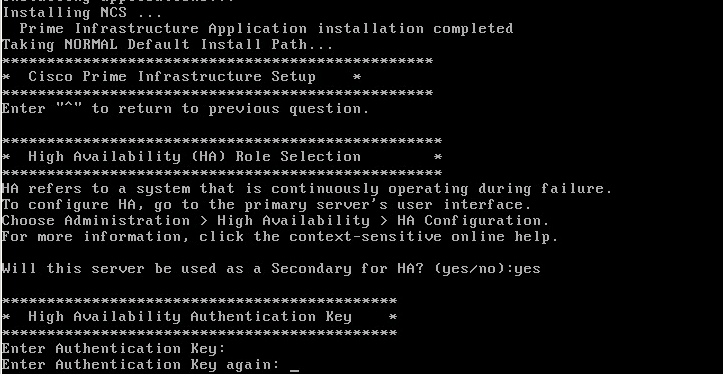

2014_07_03_15_30_45_wldcbpinf02.mkcorp.com_Remote_Desktop_ConnectionSpecify that the server will act as secondary server

2014_07_03_15_56_23_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

Apply settings

2014_07_03_15_56_47_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

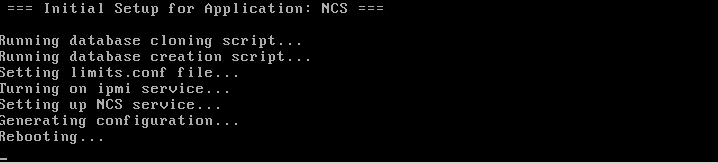

Wait for setup to complete and reboot the server

2014_07_03_16_03_42_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

For some reason, rebooted twice…

2014_07_03_16_06_04_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

Taraaaaa!!!!

2014_07_03_16_10_42_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

To connect to the secondary server via webinterface

https://10.XX.X.XXX:8082/

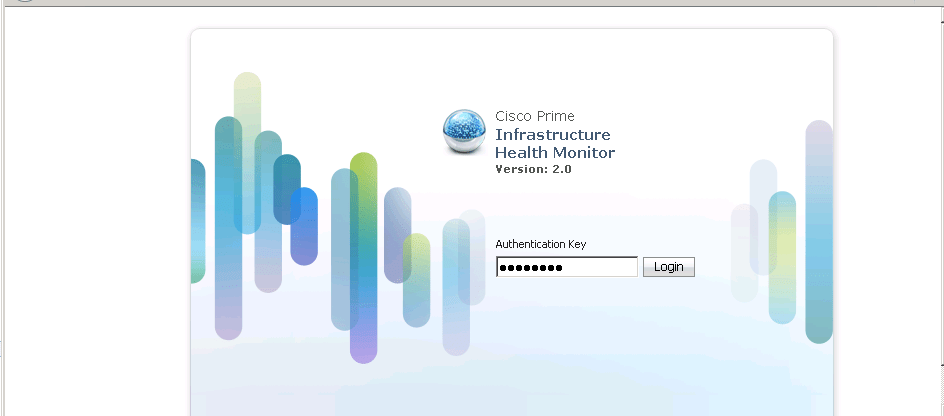

The server requests you for the authentication key that we had configured. 2014_07_03_16_20_28_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection

Also, you can see that the HA status is not yet configured. That’s something for another post.2014_07_03_16_20_51_wldcbpinf02.mkcorp.com_Remote_Desktop_Connection
