CWNA Summary Notes: Legacy 802.11 Security | Static WEP Encryption

Static WEP Encryption

This is a layer 2 encryption method using RC4 streaming cipher.

Main goals of WEP Encryption were:

  • Confidentiality (Data privacy through encryption)
  • Access Control ( Authorization if static WEP keys match)
  • Data Integrity ( Data Integrity Check-sum is computed before encryption to ensure that the data has not been tampered with)

Can be entered as a hex (0 – 9) or ASCII (A – F) characters.

Static WEP Encryption was on 2 forms:

64- bit WEP

This was the original form. It consisted of:

  • 40 bit secret static Key
  • 24 bit initialization Vector (IV) appended in the beginning of the frame
    • selected by radio device drivers
    • Is sent in clear-text
    • Is different for each frame but there is a limited number of IV combinations (16 million)

Has 10 hex (5 ASCII) characters.

128- bit WEP

It consisted of:

  • 104 bit secret static Key
  • 24 bit initialization Vector (IV) appended in the beginning of the frame

Has 26 hex (13 ASCII) characters.

WEP features

Many Vendors support up to 4 static WEP keys and the user can choose one as the default key transmission.

  • The transmission key is the static key that is used to encrypt data by the transmitting radio.
  • Client may use one key to transmit outbound and a different key to decrypt received traffic
  • For encryption / decryption to work properly, each of the 4 keys should match on with ends.

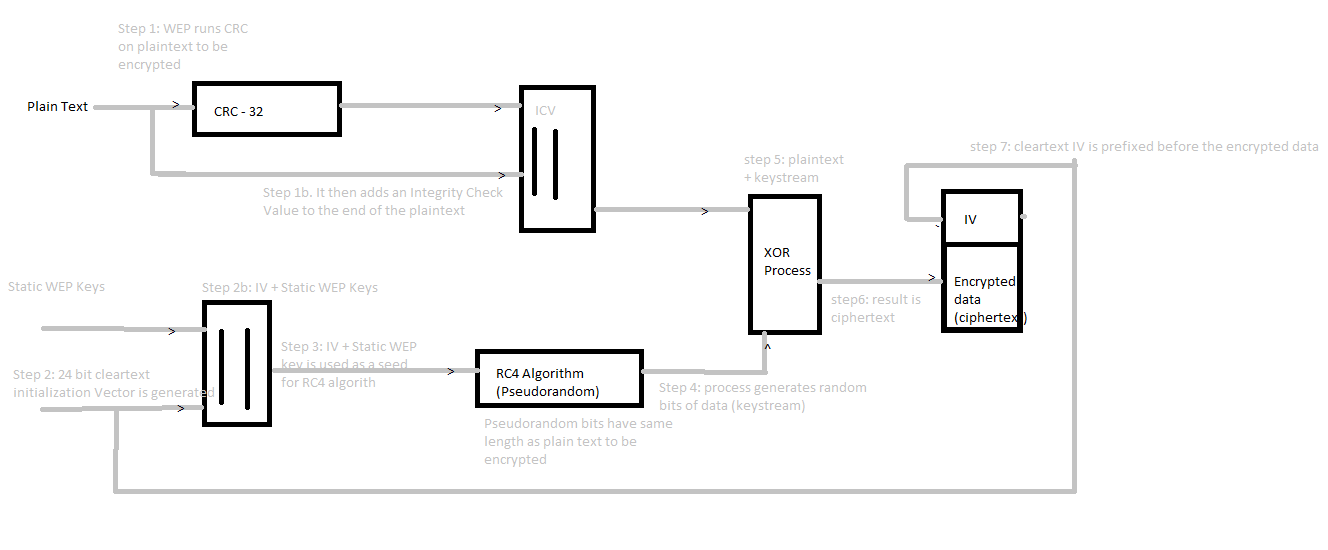

How WEP Encryption works


WEP Attacks

  1. IV Collision attack – The IV is sent in clear-text. The attackers can eventually recover the secret key given that the IV will eventually repeat itself in busy networks.
  2. Weak Key Attack – Attacker can recover the secret key much easier by recovering the known weak IV keys which are generated because of RC4 – Key scheduling algorithm
  3. Re-injection Attack – Packet re-injection attack launched using hacker tools can be used to speed up the collection of Weak IVs on the network with little traffic.
  4. Big-Flipping Attack – The Integrity Check Value data integrity checks is considered weak, hence WEP encrypted packets can be tampered with.

Disadvantages of WEP

  1. A combination of attacks 1 – 3 can crack the WEP key in less than 5 minutes
  2. Use of static keys is an administrative nightmare
  3. static keys can be compromised via social engineering.


  1. CWNA-106 Certified Wireless Network Administrator Study Guide by David D. Coleman and David A. Westcott.
