Commands in Summary
transfer download datatype code transfer download mode tftp transfer download serverip 192.168.44.248 transfer download path / transfer download filename AIR-CT5500-LDPE-K9-1-7-0-0-FUS.aes debug transfer tftp enable transfer download start reset system
Upgrade Process
(Cisco Controller) >transfer download datatype code (Cisco Controller) >transfer download mode tftp (Cisco Controller) >transfer download serverip 192.168.44.248 (Cisco Controller) >transfer download path / (Cisco Controller) >transfer download filename AIR-CT5500-LDPE-K9-1-7-0-0-FUS.aes (Cisco Controller) >debug transfer tftp enable (Cisco Controller) >transfer download start Mode............................................. TFTP Data Type........................................ Code TFTP Server IP................................... 192.168.44.248 TFTP Packet Timeout.............................. 6 TFTP Max Retries................................. 10 TFTP Path........................................ / TFTP Filename.................................... AIR-CT5500-LDPE-K9-1-7-0-0-FUS.aes This may take some time. Are you sure you want to start? (y/N) y TFTP Code transfer starting. *TransferTask: Oct 24 15:45:32.359: TFTP: Binding to remote=192.168.44.248 *TransferTask: Oct 24 15:45:32.607: 309600 bytes *TransferTask: Oct 24 15:45:32.813: 619200 bytes *TransferTask: Oct 24 15:45:33.035: 928800 bytes// Truncated
*TransferTask: Oct 24 15:45:41.548: 13003200 bytes *TransferTask: Oct 24 15:45:41.766: 13312800 bytes *TransferTask: Oct 24 15:45:41.986: 13622400 bytes TFTP receive complete... extracting components. *TransferTask: Oct 24 15:45:42.150: TFP End: 13854784 bytes transferred (0 retransmitted packets) Checking Version Built. Image version check passed. Executing LDPE Image check script. Executing init script. Writing new Field Upgrade Software RTOS to flash disk. Writing new FPGA to flash disk. Writing new Environment MCU to flash disk. Writing new Bootloader to flash disk. Writing new Offline Diagnostic Image to flash disk. Writing new Field Recovery Image to flash disk. Writing new FUS Auto upgrade Image to flash disk. Writing new USB to flash disk. Executing fini script. File transfer is successful Reboot the controller for update to complete Optionally, pre-download the image to APs before rebooting to reduce network downtime. (Cisco Controller) > (Cisco Controller) > *** IDLE TIMEOUT *** (Cisco Controller) User:
Next we reset system for upgrade to take place
(Cisco Controller) >reset system The system has unsaved changes. Would you like to save them now? (y/N) y Configuration Saved! System will now restart! Updating license storage ... Done. Restarting system. WLCNG Boot Loader Version 1.0.1 (Built on Apr 11 2009 at 13:32:33 by cisco) Board Revision 1.3 (SN: FCW1731L083, Type: AIR-CT5508-K9) (G) Verifying boot loader integrity... OK. OCTEON CN5645-NSP pass 2.1, Core clock: 600 MHz, DDR clock: 330 MHz (660 Mhz data rate) FPGA Revision 1.7 Env FW Revision 1.8 USB Console Revision 2.2 DRAM: 1024 MB Flash: 32 MB Clearing DRAM........ done Network: octeth0', octeth1 ' - Active interface E - Environment MAC address override CF Bus 0 (IDE): OK IDE device 0: - Model: STEC M2T CF 1.0.0 Firm: K1367MIX Ser#: STIM2M9313075045518 - Type: Hard Disk - Capacity: 977.4 MB = 0.9 GB (2001888 x 512) Press <ESC> now to access the Boot Menu... Loading primary image (7.2.104.17) 100% 6182456 bytes read Launching... init started: BusyBox v1.6.0 (2010-05-13 17:50:10 EDT) multi-call binary starting pid 821, tty '': '/etc/init.d/rcS' Field Upgrade Software Bundles included in this upgrade: - Bootloader - Field Recovery image - Offline Diagnostic image - FPGA image - Environment Controller (MCU) Image - USB Console image ****************************************************************** * Please make sure POWER SUPPLY is always ON during this period. * * Lost POWER will completely kill this unit and not recoverable. * * There may be multiple reboot. Please let the program run. * ****************************************************************** Start soon ... ==================== Checking for Bootloader upgrade Bootloader upgrade ... Upgrade Bootloader from 1.0.1 to 1.0.16 ****************************************************************** * Upgrade takes about 41 seconds to complete. * * Please make sure POWER SUPPLY is always ON during this period. * * Loss of POWER will completely kill this unit and make it * * unrecoverable * ****************************************************************** Upgrade will start in 30 sec, press (y) to start immediately else press any key to ABORT !!. Timeout, starting upgrade. Erasing Flash (estimated 6 seconds) ... Writing to Flash (estimated 41 seconds) ... Checking Boot loader integrity (estimated 2 seconds) ... OK. ==================== Checking for FPGA upgrade FPGA upgrade ... FPGA image is up to date ==================== Checking for MCU upgrade Environment controller upgrade ... Env image is up to date ==================== Checking for usbcon upgrade USB upgrade ... USB image is up to date ==================== Checking for Offline Diagnostic image upgrade Offline Diagnostic upgrade ... Upgrade OFD from version WLCNG OFD 0.9.35 to WLCNG OFD 0.9.28 Upgrade will start in 30 sec, press (y) to start immediately else press any key to ABORT !!. Timeout, starting upgrade. ****************************************************************** * Please make sure POWER SUPPLY is always ON during this period. * ****************************************************************** Erasing Flash (estimated 24 seconds) ... Writing to flash (estimated 111 seconds) ... Writing new Field Recovery Image to flash disk. Writing new FUS Auto upgrade Image to flash disk. Writing new USB to flash disk. Executing fini script. File transfer is successful Reboot the controller for update to complete Optionally, pre-download the image to APs before rebooting to reduce network downtime. (Cisco Controller) > (Cisco Controller) > *** IDLE TIMEOUT *** (Cisco Controller) User: mknetwork Password:******** (Cisco Controller) >reset system The system has unsaved changes. Would you like to save them now? (y/N) y Configuration Saved! System will now restart! Updating license storage ... Done. Restarting system. WLCNG Boot Loader Version 1.0.1 (Built on Apr 11 2009 at 13:32:33 by cisco) Board Revision 1.3 (SN: FCW1731L083, Type: AIR-CT5508-K9) (G) Verifying boot loader integrity... OK. OCTEON CN5645-NSP pass 2.1, Core clock: 600 MHz, DDR clock: 330 MHz (660 Mhz data rate) FPGA Revision 1.7 Env FW Revision 1.8 USB Console Revision 2.2 DRAM: 1024 MB Flash: 32 MB Clearing DRAM........ done Network: octeth0', octeth1 ' - Active interface E - Environment MAC address override CF Bus 0 (IDE): OK IDE device 0: - Model: STEC M2T CF 1.0.0 Firm: K1367MIX Ser#: STIM2M9313075045518 - Type: Hard Disk - Capacity: 977.4 MB = 0.9 GB (2001888 x 512) Press <ESC> now to access the Boot Menu... Loading primary image (7.2.104.17) 100% 6182456 bytes read Launching... init started: BusyBox v1.6.0 (2010-05-13 17:50:10 EDT) multi-call binary starting pid 821, tty '': '/etc/init.d/rcS' Field Upgrade Software Bundles included in this upgrade: - Bootloader - Field Recovery image - Offline Diagnostic image - FPGA image - Environment Controller (MCU) Image - USB Console image ****************************************************************** * Please make sure POWER SUPPLY is always ON during this period. * * Lost POWER will completely kill this unit and not recoverable. * * There may be multiple reboot. Please let the program run. * ****************************************************************** Start soon ... ==================== Checking for Bootloader upgrade Bootloader upgrade ... Upgrade Bootloader from 1.0.1 to 1.0.16 ****************************************************************** * Upgrade takes about 41 seconds to complete. * * Please make sure POWER SUPPLY is always ON during this period. * * Loss of POWER will completely kill this unit and make it * * unrecoverable * ****************************************************************** Upgrade will start in 30 sec, press (y) to start immediately else press any key to ABORT !!. Timeout, starting upgrade. Erasing Flash (estimated 6 seconds) ... Writing to Flash (estimated 41 seconds) ... Checking Boot loader integrity (estimated 2 seconds) ... OK. ==================== Checking for FPGA upgrade FPGA upgrade ... FPGA image is up to date ==================== Checking for MCU upgrade Environment controller upgrade ... Env image is up to date ==================== Checking for usbcon upgrade USB upgrade ... USB image is up to date ==================== Checking for Offline Diagnostic image upgrade Offline Diagnostic upgrade ... Upgrade OFD from version WLCNG OFD 0.9.35 to WLCNG OFD 0.9.28 Upgrade will start in 30 sec, press (y) to start immediately else press any key to ABORT !!. Timeout, starting upgrade. ****************************************************************** * Please make sure POWER SUPPLY is always ON during this period. * ****************************************************************** Erasing Flash (estimated 24 seconds) ... Writing to flash (estimated 111 seconds) ... ==================== Checking for Field recovery image upgrade Field Recovery Image upgrade ... Upgrade Field Recovery Image from version 6.0.182.0 to 7.0.112.21 Upgrade will start in 30 sec, press (y) to start immediately else press any key to ABORT !!. Timeout, starting upgrade. ****************************************************************** * Please make sure POWER SUPPLY is always ON during this period. * ****************************************************************** Erasing Flash (estimated 49 seconds) ... Writing to flash (estimated 716 seconds) ... All upgrades done. System reboot ... Restarting system. WLCNG Boot Loader Version 1.0.16 (Built on Feb 28 2011 at 13:14:54 by cisco) Board Revision 1.3 (SN: FCW1731L083, Type: AIR-CT5508-K9) (G) Verifying boot loader integrity... OK. OCTEON CN5645-NSP pass 2.1, Core clock: 600 MHz, DDR clock: 330 MHz (660 Mhz data rate) FPGA Revision 1.7 Env FW Revision 1.8 USB Console Revision 2.2 CPU Cores: 10 DRAM: 1024 MB Flash: 32 MB Clearing DRAM........ done Network: octeth0', octeth1 ' - Active interface E - Environment MAC address override CF Bus 0 (IDE): OK IDE device 0: - Model: STEC M2T CF 1.0.0 Firm: K1367MIX Ser#: STIM2M9313075045518 - Type: Hard Disk - Capacity: 977.4 MB = 0.9 GB (2001888 x 512) Press <ESC> now to access the Boot Menu... Loading primary image (7.4.100.0) 100% 34598971 bytes read Launching... init started: BusyBox v1.6.0 (2010-05-13 17:50:10 EDT) multi-call binary starting pid 821, tty '': '/etc/init.d/rcS' Set PLX switch MPS settings .............!!!!!!! Detecting Hardware ... set smp_affinity for irq 48 003f DP from CGE5.0 ... starting pid 1067, tty '/dev/ttyS0': '/usr/bin/gettyOrMwar' Setting up ZVM Exporting LD_LIBRARY_PATH Cryptographic library self-test....passed! XML config selected Validating XML configuration Read HA Config before validation octeon_device_init: found 1 DPs readCPUConfigData: cardid 0x6070001 Cisco is a trademark of Cisco Systems, Inc. Software Copyright Cisco Systems, Inc. All rights reserved. Cisco AireOS Version 7.4.100.0 Firmware Version FPGA 1.7, Env 1.8, USB console 2.2 Initializing OS Services: ok Initializing Serial Services: ok Initializing Network Services: ok Initializing Licensing Services: ok License daemon start initialization..... License daemon running..... Starting Statistics Service: ok Starting ARP Services: ok Starting Trap Manager: ok Starting Network Interface Management Services: ok Starting System Services: ok Starting FIPS Features: ok : Not enabled Starting Fastpath Hardware Acceleration: ok Starting Fastpath Console redirect : ok Starting Fastpath DP Heartbeat : ok Fastpath CPU0.00: Starting Fastpath Application. SDK-1.8.0, build 269. Flags-[DUTY CYCLE] : ok Fastpath CPU0.00: Initializing last packet received queue. Num of cores(10) Fastpath CPU0.00: Init MBUF size: 1856, Subsequent MBUF size: 2040 Fastpath CPU0.00: Core 0 Initialization and FIPS self-test: ok Fastpath CPU0.00: Initializing Timer... Fastpath CPU0.00: Initializing Timer...done. Fastpath CPU0.00: Initializing Timer... Fastpath CPU0.00: Initializing NBAR AGING Timer...done. Fastpath CPU0.01: Core 1 Initialization and FIPS self-test: ok Fastpath CPU0.02: Core 2 Initialization and FIPS self-test: ok Fastpath CPU0.03: Core 3 Initialization and FIPS self-test: ok Fastpath CPU0.01: Received instruction to get link status Fastpath CPU0.04: Core 4 Initialization and FIPS self-test: ok Fastpath CPU0.05: Core 5 Initialization and FIPS self-test: ok Fastpath CPU0.06: Core 6 Initialization and FIPS self-test: ok Fastpath CPU0.07: Core 7 Initialization and FIPS self-test: ok Fastpath CPU0.08: Core 8 Initialization and FIPS self-test: ok Fastpath CPU0.09: Core 9 Initialization and FIPS self-test: ok Starting Switching Services: ok Starting QoS Services: ok Starting Policy Manager: ok Starting Data Transport Link Layer: ok Starting Access Control List Services: ok Starting System Interfaces: ok Starting Client Troubleshooting Service: ok Starting Management Frame Protection: ok Starting Certificate Database: ok Starting VPN Services: ok Starting Licensing Services: ok Starting Redundancy: ok Starting LWAPP: ok Starting CAPWAP: ok Starting LOCP: ok Starting Security Services: ok Starting Policy Manager: ok Starting Authentication Engine: ok Starting Mobility Management: ok Starting AVC Services: ok Starting Virtual AP Services: ok Starting AireWave Director: ok Starting Network Time Services: ok Starting Cisco Discovery Protocol: ok Starting Broadcast Services: ok Starting Logging Services: ok Starting DHCP Server: ok Starting IDS Signature Manager: ok Starting RFID Tag Tracking: ok Starting RF Profiles: ok Starting Power Supply and Fan Status Monitoring Service: ok Starting Mesh Services: ok Starting TSM: ok Starting CIDS Services: ok Starting Ethernet-over-IP: ok Starting DTLS server: enabled in CAPWAP Starting CleanAir: ok Starting WIPS: ok Starting SSHPM LSC PROV LIST: ok Starting RRC Services: ok Starting SXP Services: ok Starting Alarm Services: ok Starting FMC HS: ok Starting IPv6 Services: ok Starting Config Sync Manager : ok Starting Hotspot Services: ok Starting PMIP Services: ok Starting Portal Server Services: ok Starting mDNS Services: ok Starting Management Services: Web Server: CLI: ok Secure Web: ok License Agent: ok (Cisco Controller) Enter User Name (or 'Recover-Config' this one-time only to reset configuration to factory defaults)

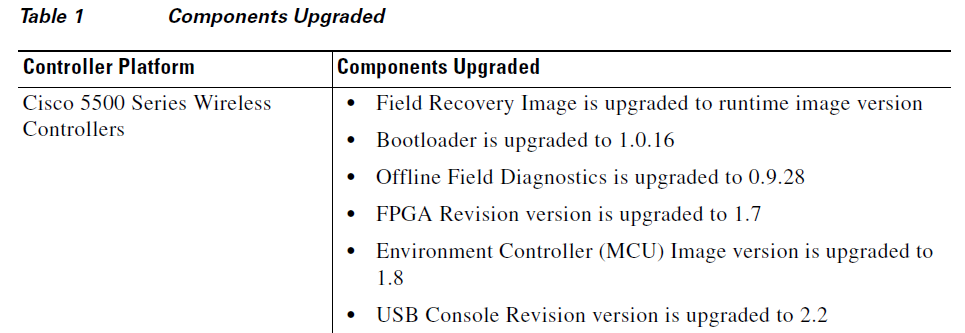

Confirm that FUS has been upgraded. According to Cisco Relase notes, we should note the following:
(Cisco Controller) >show sysinfo Manufacturer's Name.............................. Cisco Systems Inc. Product Name..................................... Cisco Controller Product Version.................................. 7.4.100.0 Bootloader Version............................... 1.0.16 Field Recovery Image Version..................... 7.0.112.21 Firmware Version................................. FPGA 1.7, Env 1.8, USB console 2.2 Build Type....................................... DATA + WPS + LDPE System Name...................................... NController System Location.................................. System Contact................................... System ObjectID.................................. 1.3.6.1.4.1.9.1.1069 Redundancy Mode.................................. Disabled IP Address....................................... 192.168.40.254 Last Reset....................................... Software reset System Up Time................................... 0 days 0 hrs 3 mins 27 secs System Timezone Location......................... System Stats Realtime Interval................... 5 System Stats Normal Interval..................... 180 Configured Country............................... US - United States Operating Environment............................ Commercial (0 to 40 C) --More-- or (q)uit Internal Temp Alarm Limits....................... 0 to 65 C Internal Temperature............................. +44 C External Temperature............................. +27 C Fan Status....................................... OK State of 802.11b Network......................... Enabled State of 802.11a Network......................... Enabled Number of WLANs.................................. 1 Number of Active Clients......................... 0 Memory Current Usage............................. Unknown Memory Average Usage............................. Unknown CPU Current Usage................................ Unknown CPU Average Usage................................ Unknown Burned-in MAC Address............................ BC:16:65:F9:38:C0 Power Supply 1................................... Present, OK Power Supply 2................................... Absent Maximum number of APs supported.................. 100
